Gün Zirve Bituminous Waterproofing Membrane Series

PP, PC, EP, EC, Mineral-Surfaced and Patterned Bituminous Waterproofing Membranes

İZOPOLY YALITIM's Gün Zirve Membrane Series is a range of professional bituminous waterproofing solutions that provide long-lasting protection for foundations, concrete retaining walls, terraces, roofs and industrial buildings. Available in PP, PC, EP, EC, mineral-surfaced and patterned versions, it delivers high performance across different climates and application requirements.

What Is Gün Zirve Membrane?

The Gün Zirve Membrane Series consists of professional bituminous waterproofing membranes developed to protect buildings against water, moisture and external environmental effects. With high waterproofing performance, strong adhesion and resistance to hot and cold weather, they are used with confidence in a wide variety of building types.

Produced with modern manufacturing technology, Gün Zirve membrane solutions provide long-lasting protection in residential projects, commercial buildings, industrial facilities, parking deck applications and reinforced concrete structures.

Advantages of the Gün Zirve Membrane Series

• High waterproofing performance
• Strong adhesion and surface bonding
• Resistance to hot and cold weather
• Long service life
• UV-resistant options
• Easy torch application
• Suitable for foundation and roof systems
• Professional insulation solution

Gün Zirve Membrane Types

GÜN ZİRVE PP 300 -10°

A polyester-reinforced bituminous waterproofing membrane. It delivers high performance in foundation, concrete retaining wall and terrace applications.

Technical Features

• Polyester carrier
• -10°C flexibility
• Torch-applied
• Strong adhesion performance

GÜN ZİRVE PP 400 -10°

A high-strength membrane with a polyester carrier, developed for heavy-duty applications.

Technical Features

• Reinforced polyester carrier
• Long-lasting construction
• High mechanical strength
• Professional use

GÜN ZİRVE PC 200 -10°

An economical bituminous membrane solution with a glass fleece carrier.

Technical Features

• Glass fleece carrier
• Economical solution
• Easy installation
• General insulation applications

GÜN ZİRVE PC 300 -10°

A high-performance bituminous membrane solution with a glass fleece carrier.

Technical Features

• Glass fleece carrier
• Durable construction
• Torch-applied
• Long-lasting protection

GÜN ZİRVE EP 300 -20°

An SBS-modified elastomeric polyester membrane solution.

Technical Features

• Elastomeric structure
• Polyester carrier
• -20°C flexibility
• Cold climate resistance

GÜN ZİRVE EP 400 -20°

An elastomeric bituminous membrane that delivers high performance in harsh weather conditions.

Technical Features

• SBS-modified
• High flexibility
• Strong adhesion
• Professional application solution

GÜN ZİRVE EC 200 -20°

An elastomeric membrane solution with a glass fleece carrier.

Technical Features

• Glass fleece carrier
• Cold weather resistance
• Long-lasting protection
• Flexible structure

GÜN ZİRVE EC 300 -20°

A high-performance elastomeric membrane developed for professional projects.

Technical Features

• SBS-modified
• -20°C flexibility
• Strong adhesion
• High strength

GÜN ZİRVE TAŞLI (Mineral-Surfaced)

A membrane solution with a mineral granule surface. It provides UV protection on exposed roof systems.

Technical Features

• Mineral granule surfacing
• UV resistance
• Decorative appearance
• Roof applications

GÜN ZİRVE DESENLİ (Patterned)

A professional bituminous membrane solution with a decorative surface finish.

Technical Features

• Patterned surface
• UV resistance
• Aesthetic appearance
• Durable construction

Technical Comparison Table

Areas of Use for the Gün Zirve Membrane Series

The Gün Zirve Membrane Series is designed to provide professional waterproofing for foundations, concrete retaining walls, terraces, roofs and industrial buildings. Its high-strength bituminous construction creates long-lasting protection for structures.

Areas of Use

• Foundation and concrete retaining wall waterproofing
• Roof waterproofing
• Terrace insulation
• Parking deck waterproofing
• Wet area applications
• Industrial building insulation
• Reinforced concrete protection systems
• Exposed roof membrane applications
• UV-resistant roof systems

Surface Preparation

Before installation, the surface must be clean, dry and sound. Dust, oil, dirt and any residues that could reduce adhesion must be removed. Applying a suitable bitumen primer is recommended for stronger adhesion.

Pre-Installation Checklist

• The surface must be dry
• Voids and cracks must be repaired
• Sharp protrusions must be removed
• Primer application must be completed
• Negative water pressure must be checked

Gün Zirve Membrane Application Method

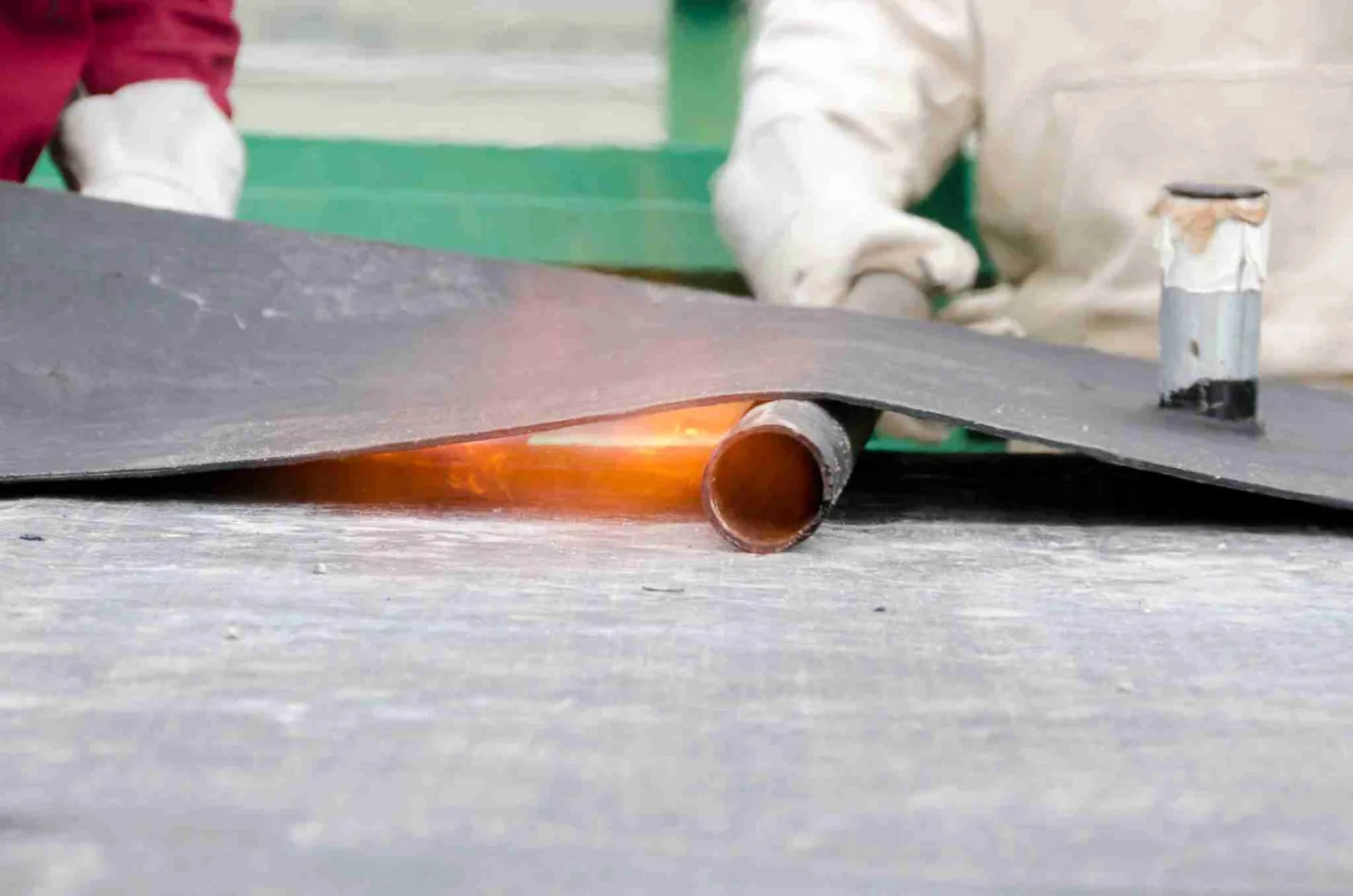

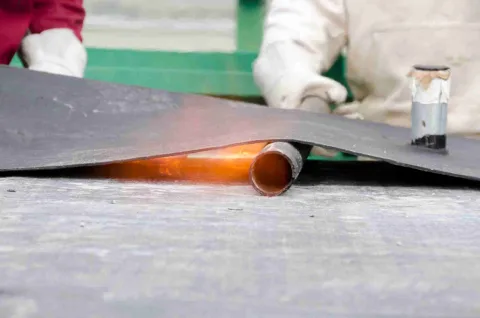

Gün Zirve membrane products are applied by the torch method. During installation, the underside of the membrane is heated in a controlled manner and firmly bonded to the substrate.

Installation Steps

1. Surface Preparation

The substrate is cleaned and bitumen primer is applied.

2. Membrane Positioning

The membrane rolls are positioned in the direction of installation.

3. Torch Application

The underside is heated in a controlled manner and bonded to the substrate.

4. Overlap Check

A minimum overlap of 10 cm must be provided at the seams.

5. Final Inspection

The welded areas and surface adhesion are checked.

Technical Advantages of Gün Zirve Membrane

SBS and APP Modified Technology

Thanks to the SBS and APP modified bitumen technology used in the Gün Zirve membrane series, the products offer high resistance to hot and cold temperature swings.

Polyester Felt Reinforced Membranes

The polyester felt carriers used in the PP and EP series provide high tensile strength and flexibility.

Glass Fleece Reinforced Membranes

The PC and EC series offer the advantages of an economical and dimensionally stable construction.

Mineral-Surfaced Membranes

Mineral-surfaced membrane series provide extra protection against UV rays, offering long-lasting performance on exposed roof systems.

Technical Drawing and Application Detail

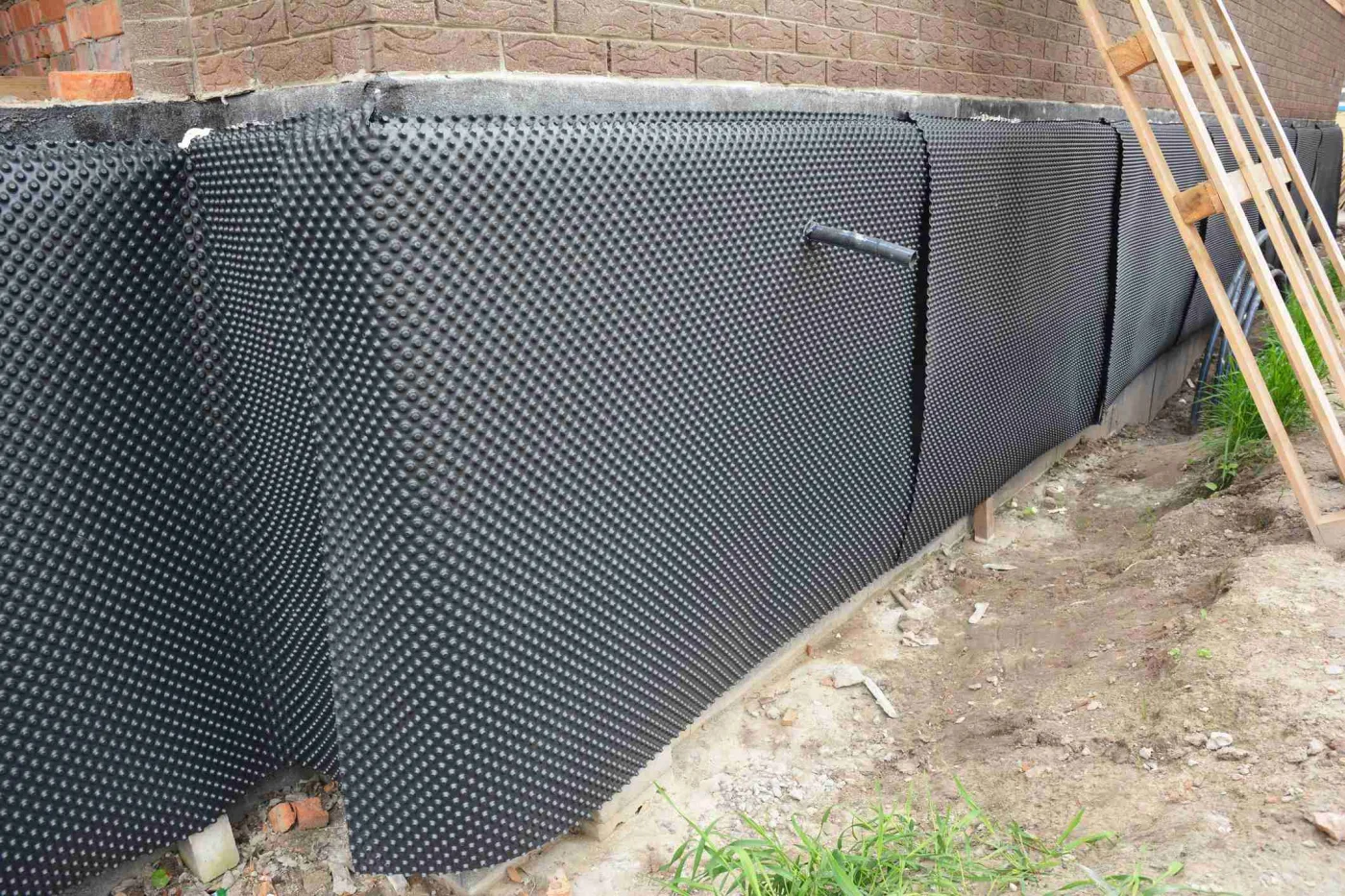

Foundation and Concrete Retaining Wall Application

• Concrete surface
• Bitumen primer
• Gün Zirve membrane layer
• Protection board
• Drainage system
• Backfill

Roof Application

• Reinforced concrete slab
• Screed to falls
• Vapor barrier layer
• Thermal insulation
• Gün Zirve membrane layer
• Protective coating

Technology Catalog

You can review the product catalog for detailed technical information about the Gün Zirve Membrane Series.

📄 Technical Catalog:
Gün Yalıtım Technical Catalog PDF

Where is Gün Zirve membrane used?

It can be used in foundation, concrete retaining wall, roof, terrace and industrial building applications.

What is the difference between EP and PP membranes?

The EP series offers higher flexibility at low temperatures thanks to its elastomeric structure, while the PP series delivers strong performance for standard applications.

What is mineral-surfaced membrane used for?

Mineral-surfaced membranes resist UV rays and are used in exposed roof applications.

Is Gün Zirve membrane UV resistant?

The mineral-surfaced and patterned series have a UV-resistant surface.

Is Gün Zirve membrane long-lasting?

When installed correctly, it is a professional waterproofing solution that delivers high performance for many years.
