Günproof Membrane

What Is Günproof Membrane?

Günproof Membrane is a professional bitumen-based waterproofing membrane used to protect buildings against water, moisture and external environmental effects. With a choice of thicknesses, it can be used for light, medium and heavy-duty waterproofing applications.

It provides dependable waterproofing, especially on foundation shear walls, roofs, terraces, balconies, car park decks and industrial buildings. The thickness can be chosen to match the mechanical strength, application area and traffic load the project requires.

Günproof Membrane Types

Günproof 3.5 mm

Günproof 3.5 mm is a bituminous membrane used for general waterproofing applications. It offers an economical, dependable solution for foundations, roofs, terraces and wet areas.

Technical Features

• 3.5 mm thickness
• Torch-applied
• Suitable for general waterproofing applications
• Strong surface adhesion

Günproof 4 mm

Günproof 4 mm is the bituminous membrane of choice for building applications that demand higher performance. It provides long-lasting protection on foundation shear walls, roofs and terraces.

Technical Features

• 4 mm thickness
• High strength
• Suitable for foundation and roof applications
• Professional waterproofing solution

Günproof 5 mm

Günproof 5 mm is a thick bituminous membrane developed for heavy-duty waterproofing. It is a good choice for projects that involve heavy water pressure and call for mechanical strength and long-lasting performance.

Technical Features

• 5 mm thickness
• High mechanical strength
• Suitable for heavy-duty applications
• Strong performance in industrial buildings and foundation waterproofing

Günproof Double Felt 4.5 mm

Günproof Double Felt 4.5 mm is a specialty bituminous membrane whose double-felt construction offers higher strength and reinforced performance. It is preferred on professional projects and in areas that require high strength and long-lasting waterproofing.

Technical Features

• 4.5 mm thickness
• Double felt construction
• High mechanical strength
• Suitable for professional and heavy-duty applications

Technical Comparison Table

Areas of Use

• Foundation shear wall waterproofing
• Roof waterproofing
• Terrace insulation
• Balcony waterproofing
• Wet area applications
• Podium and car park deck insulation
• Industrial building waterproofing
• Surfaces in contact with soil
• Reinforced concrete protection systems

Advantages of Günproof Membrane

• A choice of thicknesses
• High watertightness performance
• Strong surface adhesion
• Easy torch application
• Long-lasting protection
• Options suited to heavy-duty applications
• Reliable performance on foundations, roofs and terraces
• High mechanical strength with the double felt option

Application Method

Before installing Günproof Membrane, the substrate must be clean, dry and sound. Remove dust, dirt, oil and any residue that could reduce adhesion beforehand. A bitumen primer is recommended for stronger bonding.

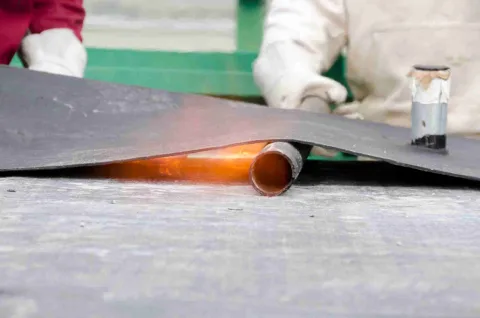

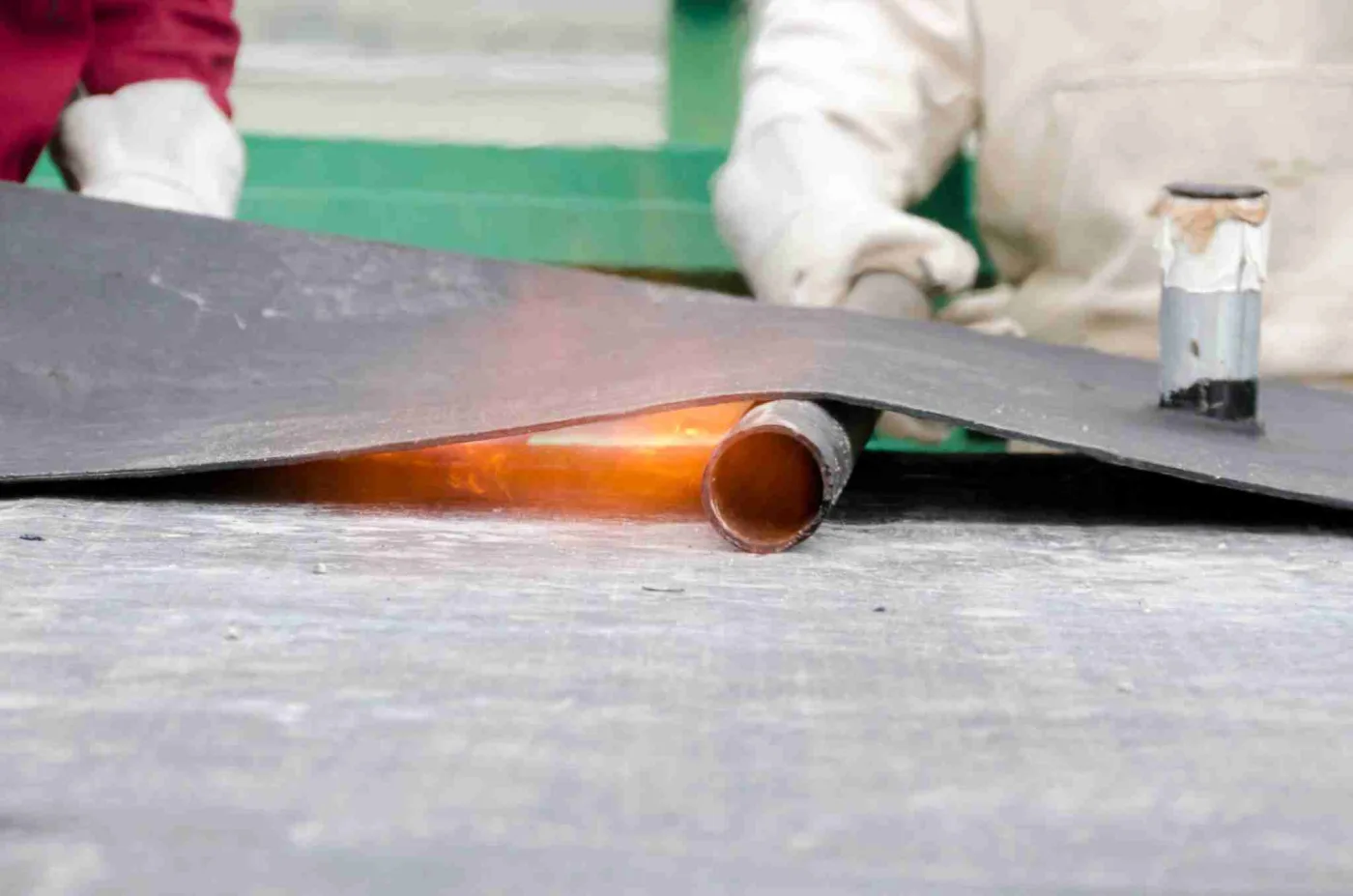

The membrane rolls are unrolled in the direction of application. The underside is heated in a controlled way with a torch flame and bonded to the substrate. Leave an overlap of at least 10 cm at the joints, and check the welded areas carefully.

Technical Drawing Description

Foundation Shear Wall Application

1. Reinforced concrete shear wall surface
2. Bitumen primer
3. Günproof membrane layer
4. Protection board
5. Drainage board
6. Soil backfill

Roof and Terrace Application

1. Reinforced concrete slab
2. Screed to falls
3. Bitumen primer
4. Günproof membrane layer
5. Protective top coat

Technical Catalog

📄 Download the catalog file for the product's technical details.

Technical PDF Catalog:
https://izopolyyalitim.com/Belgeler/GUN_YALITIM_CATALOG_ENG_2025.pdf

Frequently Asked Questions

Where is Günproof membrane used?

Günproof membrane can be used on foundations, shear walls, roofs, terraces, balconies, car park decks and industrial buildings.

What is the difference between Günproof 3.5 mm and 5 mm?

The 3.5 mm is preferred for general waterproofing, while the 5 mm offers higher strength and suits heavy-duty applications.

What is Günproof Double Felt 4.5 mm used for?

Thanks to its double-felt construction, Double Felt 4.5 mm offers higher mechanical strength and long-lasting protection on professional projects.

How is Günproof membrane applied?

Günproof membrane is applied with a torch flame. The underside is heated and bonded to the substrate.

Can Günproof membrane be used on roofs?

Yes. Günproof membrane can be used on roofs, terraces, balconies and other areas exposed to water.
