Oscar Membrane

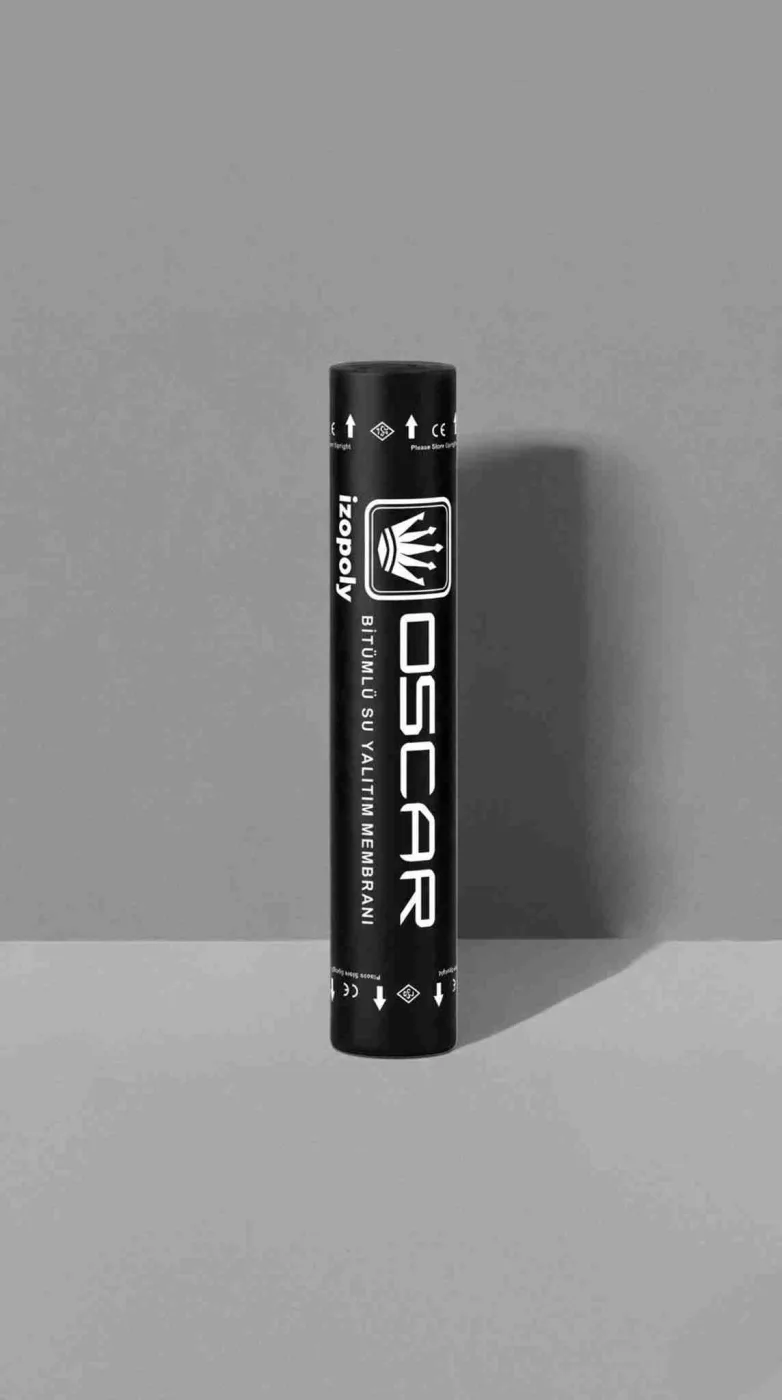

Oscar Bituminous Waterproofing Membrane

What Is Oscar Membrane?

Oscar Membrane is a professional bitumen-based waterproofing membrane used to make building surfaces that come into contact with water watertight. It helps prevent water damage in critical areas of a structure such as foundations, roofs, terraces and concrete retaining walls.

Bituminous membranes are produced by coating polymer-modified bitumen onto a carrier layer. Depending on the product type, this carrier can be polyester felt or glass fleece. The Oscar series offers different carrier options to meet changing project requirements. Oscar Membrane Types

Oscar PP 300

Oscar PP 300 is a bituminous membrane with a polyester felt carrier. It is preferred for applications that demand high mechanical strength and flexibility, and can be used for foundation and concrete retaining wall waterproofing, terraces, roofs and reinforced concrete protection.

Technical Features

• Polyester felt carrier
• High mechanical strength
• Suitable for foundation and concrete retaining wall applications
• Torch-applied installation
• Long-lasting waterproofing

Oscar PC 200

Oscar PC 200 is an economical bituminous membrane solution with a glass fleece carrier. It can be chosen for general waterproofing needs and used on roofs, terraces, balconies and wet areas.

Technical Features

• Glass fleece carrier
• Economical waterproofing solution
• Easy installation
• Suitable for general insulation applications
• Torch-applied installation

Oscar PC 300

Oscar PC 300 is a higher-performance bituminous membrane with a glass fleece carrier. It can be chosen over PC 200 for applications that call for a stronger build.

Technical Features

• Glass fleece carrier
• Suitable for applications requiring higher strength
• Can be used on roofs, terraces and foundations
• Strong surface adhesion
• Professional waterproofing solution

Technical Comparison Table

• Foundation and concrete retaining wall waterproofing
• Roof waterproofing
• Terrace insulation
• Balcony waterproofing
• Wet area applications
• Surfaces in contact with soil
• Parking deck insulation
• Reinforced concrete protection systems

• High waterproofing performance
• Economical and reliable solution
• Easy torch-applied installation
• Strong surface bonding
• Suitable for foundation and roof systems
• Choice of carrier types
• Long-lasting protection
• Professional insulation performance

When installing Oscar Bituminous Membrane, the surface must be clean, dry and sound. Dust, oil, dirt and any residues that could reduce adhesion should be removed beforehand. Applying a bitumen primer is recommended for stronger bonding.

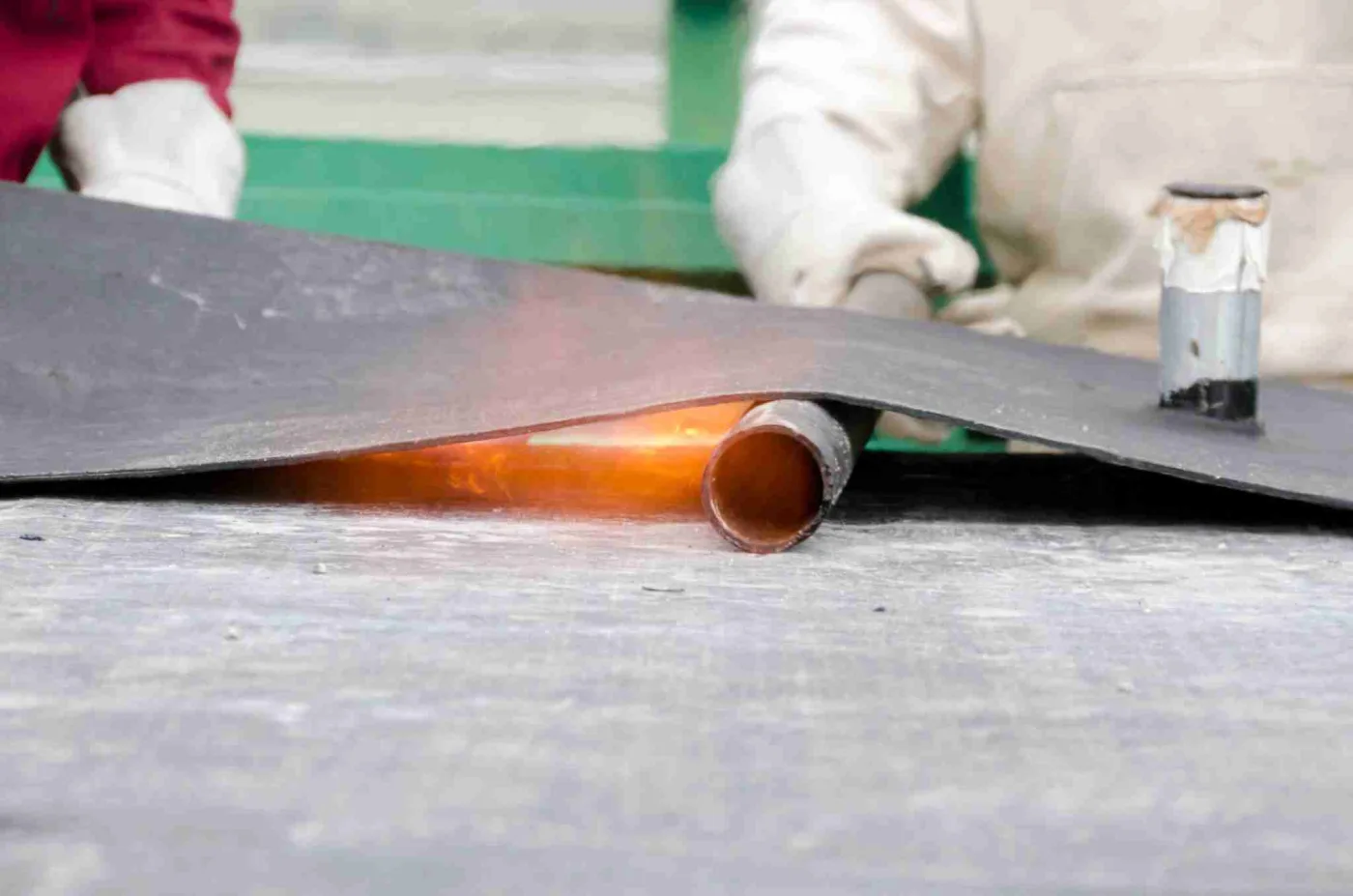

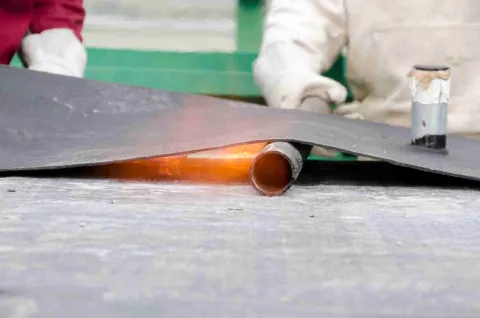

The membrane rolls are unrolled in the direction of installation. The underside is heated in a controlled manner with a torch flame and bonded to the substrate. For waterproofing performance, it is important to overlap the seams by at least 10 cm and to inspect the welded areas carefully.

Foundation and Concrete Retaining Wall Application

1. Reinforced concrete wall surface
2. Bitumen primer
3. Oscar bituminous membrane layer
4. Protection board
5. Drainage board
6. Soil backfill

Roof and Terrace Application

1. Reinforced concrete slab
2. Screed to falls
3. Bitumen primer
4. Oscar membrane layer
5. Protective top coat

Technical Catalog

📄 You can review the catalog file for detailed technical information on the product.

Technical PDF Catalog:
https://izopolyyalitim.com/Belgeler/GUN_YALITIM_CATALOG_ENG_2025.pdf

Where is Oscar membrane used?

Oscar membrane can be used in foundation, concrete retaining wall, roof, terrace, balcony and wet area applications.

What is the difference between Oscar PP 300 and Oscar PC 300?

Oscar PP 300 has a polyester felt carrier and is preferred for applications that demand high mechanical strength. Oscar PC 300 has a glass fleece carrier and can be used for general waterproofing applications.

Is Oscar PC 200 an economical solution?

Yes. With its glass fleece carrier, Oscar PC 200 is an economical bituminous membrane solution for general waterproofing needs.

How is Oscar membrane applied?

Oscar membrane is applied with a torch flame. The underside of the membrane is heated and bonded to the substrate.

Can Oscar membrane be used on roofs?

Yes. Oscar membrane can be used on roofs, terraces, balconies and other areas exposed to water.
